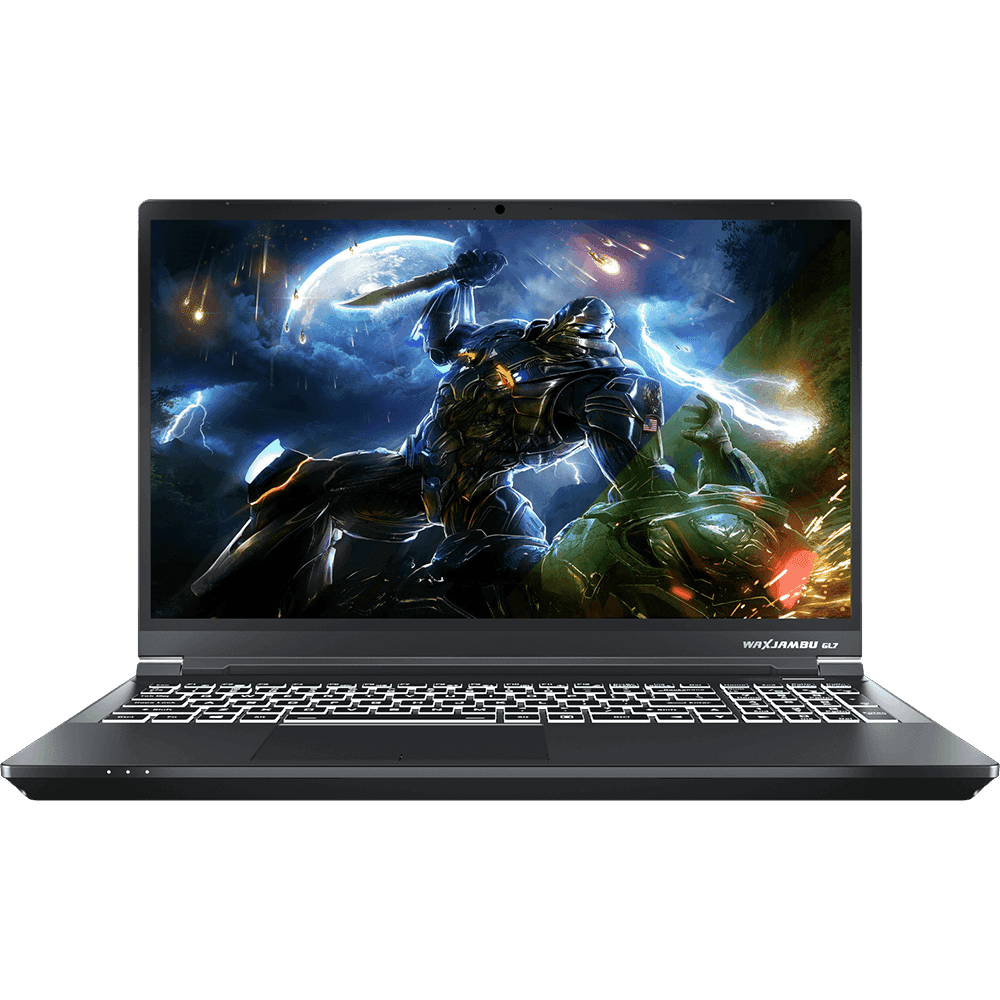

Walton Waxjambu GL710H Laptop

15.6"FHD (1920x1080) Matte IPS LED Backlit Display with 144Hz Refresh Rate & 72% NTSC

Intel® Core™ i7-10870H Processor

16GB DDR4 3200MHz RAM

1TB M.2 2280 NVMe PCIE 3.0x4 interface with DRAM

Wi-Fi 6.0 (802.11ax(2x2)) + BT 5.2

Per-Key RGB Backlight Keyboard with numeric pad

Processor

Intel® Core™ i7-10870H Processor (14nm, 2.2GHz upto 5.00GHz, 16MB Smart Cache, TDP: 45W)

Chipset

Mobile Intel® HM470 Express Chipset

Display

15.6"(39.62cm) FHD (1920x1080) Matte IPS LED Backlit Display with 144Hz Refresh Rate & 72% NTSC, Close to 100% sRGB

Memory

Installed RAM : 2 x 8GB DDR4 3200MHz SODIMM RAM
Total RAM Slot : 2
Max. RAM Support : Expandable memory up to 32GB

Graphics

Intel® UHD Graphics 630
NVIDIA® GeForce RTX™ 3060
- 6GB GDDR6 Video RAM
- Boost Clock 1425 MHz
- Maximum Graphics Power 105W
- Support PCIe Gen3
- Microsoft DirectX® 12 Compatible
- NVIDIA® PhysX®
- GeForce CUDA™ Technology
- Dynamic Boost 2.0
- Microsoft Hybrid Graphics Mode
- Support 4 Active Displays
- Support NVIDIA® Surround View via HDMI x1,miniDP x1 and TBT x 1

Storage

Installed Storage : 1 x 1TB M.2 2280 SSD, NVMe PCIe Gen 3x4 Interface with DRAM
Supported SSD Type : SATAIII/ PCIe Gen3x4 M.2 2280
Total Storage Slot : 2
Max. Storage Support : Up to 2TB

Keyboard and Pointing Device

Per-Key RGB Backlight keyboard with Numeric Pad
Built in Gamma Secure Touch pad with Microsoft PTP multi-gesture and scrolling function

Audio

2x2W Speakers
S/PDIF Digital Output
Built in Array Microphone
Sound Blaster™ Atlas

Interface

3 x USB 3.2 Gen1 ports (Type A, 1 x powered USB port, AC/DC)
1 x Thunderbolt™ 3 port
1 x Mini Display port 1.4
1 x HDMI™ 1.4b output port (with HDCP)
1 x 2-in-1 Audio Jack (Headphone / Microphone)
1 x 2-in-1 Audio jack (Microphone / S/PDIF optical)
1 x RJ-45 LAN port
1 x DC-in jack

Card Reader

MicroSD Push-Push Card reader up to UHS-ll

Slots

Three M.2 card slots
- 1st for WLAN Combo M.2 2230 Card with PCIe/USB/CNVi interface (E Key)
- 2nd for SSD M.2 2280 Card with SATA / PCIe Gen 3x4 interface (M Key)
- 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface (M key)

Communication

Built in 10/100/1000Mb Base-TX Ethernet LAN
Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + BT 5.2

Camera

1.0M HD video camera & 2D mic

Battery

Embedded 3 cells Polymer Battery Pack, 73WH
Battery life : 500 minutes (UMA mode with 73WH battery) (N.B: Based on testing with MobileMark 2014. Battery life may vary depending on applications and configuration)

Adapter

Full Range AC adapter, AC in 100~240V, 50~60Hz
DC output 19.5V, 9.23A, 180W

Security

Kensington® Lock
Intel® PTT for system without Hardware TPM
Finger Print on Glass

Chassis

Full Metal Housing

Operating System

Windows 10

Weight & Dimension

Height: 19.8mm | Width: 357.5mm | Depth: 238mm | Weight: 1.99 kg

Finish & Color

Black

In The Box

Laptop Charger
Device Drivers & Utilities
Users Manual
