Walton Karonda GX510H Intel® Core™ i5 Processor 15.6 Inch FHD Laptop

15.6" FHD (1920x1080) Matte IPS LED Backlit Display

Intel® Core™ i5-10300H Processor

8GB DDR4 3200MHz RAM

512GB M.2 2280 NVMe PCIE 3.0x4 interface

Intel® Dual Band Wireless-AC 9462, 1x1 AC + BT 5.0

Multi-Color illuminated Keyboard

Processor

Intel® Core™ i5-10300H Processor (14nm, 2.5GHz, 8MB Smart Cache, TDP: 45W)

Chipset

Mobile Intel® HM470 Express Chipset

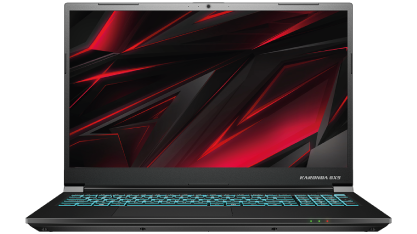

Display

15.6"(39.62cm) FHD (1920x1080) Matte IPS LED Backlit Display

Memory

8GB DDR4 3200MHz RAM
Expandable Memory up to 32GB

Graphics

Intel® UHD Graphics 630
NVIDIA® GeForce MX350
- 2GB GDDR5 Video RAM
- Support PCIe x4
- Microsoft DirectX® 12 compatible
- NVIDIA PhysX®
- GeForce CUDA™ Technology
- Microsoft Hybrid Graphics
- Support 3 active displays

Storage

512GB M.2 2280 SSD, NVMe PCIe Gen 3x4 Interface
One changeable 2.5” 7mm(H) HDD / SSD, SATA interface (Optional)

Keyboard and Pointing Device

Multi-Color illuminated full size isolated keyboard with numeric pad
Built-in Click pad with Microsoft PTP multi-gesture and scrolling function

Audio

2x2W Speakers
Built in array microphone
Sound Blaster™ Cinema 6

Interface

1 x USB 2.0 port
2 x USB 3.2 Gen 1 ports (Type A)
1 x USB 3.2 Gen 2 port (Type C) (supports data transfer only and does not support charging or external monitors)
1 x Mini Display port 1.4
1 x HDMI™ output port (with HDCP) 1.4b
1 x 2-in-1 Audio Jack (Headphone / Microphone)
1 x Microphone Jack
1 x RJ-45 LAN port
1 x DC-in jack

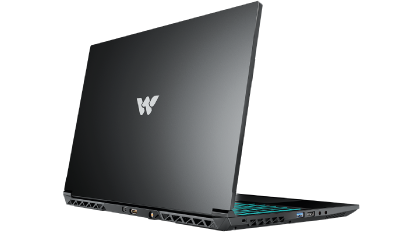

Finish & Color

Black

Card Reader

6-in-1 Card reader
MMC / RSMMC
SD / mini SD / SDHC / SDXC

Slots

Two M.2 card slots
1st for WLAN Combo M.2 2230 Card with PCIe/USB/CNVi interface (E Key)
2nd for SSD M.2 2280 Card with SATA / PCIe Gen 3x4 interface (M Key)

Communication

Built-in 10/100/1000Mb Base-TX Ethernet LAN
Intel® Dual Band Wireless-AC 9462, 1x1 AC + BT 5

Camera

1.0M HD video camera

Battery

Embedded 4 cells Polymer battery pack, 49WH
Battery life: 500 minutes (UMA mode with 49WH battery) (N.B: Based on testing with MobileMark 2014. Battery life may vary depending on applications and configuration)

Adapter

Full Range AC adapter, AC in 100~240V, 50~60Hz
DC output 19V, 4.74A, 90W

Security

Security (Kensington® Type) Lock Slot
Intel® PTT for the system without Hardware TPM

Operating System

Windows 10

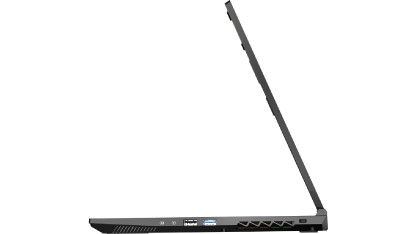

Weight & Dimension

Height: 21.9mm | Width: 359.5mm | Depth: 238mm | Weight: 1.85 kg

In The Box

Laptop Charger
Device Drivers & Utilities
